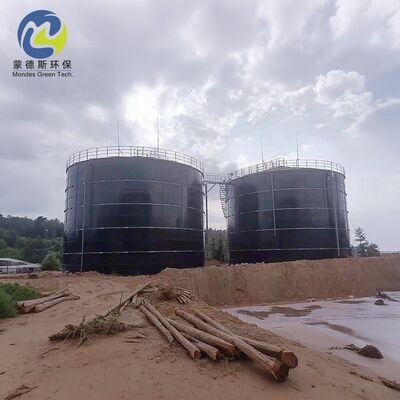

An enamel bolted tank is built from steel panels whose faces are covered in vitreous enamel and fired at 820–930°C. The enamel is not paint that can peel; it becomes part of the panel. The finished sheets are shipped to site and bolted into a tank. That single idea — glass permanently bonded to steel, assembled in modules — is why these tanks outlast concrete in corrosive service and cost far less than stainless at scale.
The lining is built in layers, not sprayed on
Most buyers picture a single "coating." A proper enamel bolted tank is actually a composite with three roles:
- The steel core carries the load — hydrostatic pressure, wind, the weight of the column above.
- The ground coat is the first enamel layer fired onto the steel. Its job is purely to anchor: it wets the metal and locks the glass to it so the bond survives thermal cycles and impact.
- The cover coat is the outer enamel you see. It is the impermeable, smooth, chemically inert barrier that actually touches the stored liquid.
This is why a holiday test matters. Because enamel is an electrical insulator, a high-voltage probe (700–1500 V, by service) will only pass a panel with zero pinholes. One void, and the steel core is exposed — so the test is how a supplier proves the lining is continuous before it ever leaves the factory.
Why "bolted" is the second half of the name
Fusing glass to steel gives you the lining. Bolting gives you the logistics. Panels are identical, stackable, and light enough to move without cranes on every site. Assembly runs top-down with jacks, which means:
- A tank rises in weeks, not the months a poured concrete basin needs to cure.
- Work continues through rain that would stall field welding or concrete pours.
- When capacity or location changes, panels can be added, removed or re-erected elsewhere — the asset keeps its value instead of becoming demolition rubble.
- Not for burial. The shell is engineered for internal liquid load, not external soil pressure. Below-grade storage calls for concrete or a purpose-built vessel.
- Needs a sealed base joint. Every bolted tank meets a concrete foundation; that ring must be detailed and sealed or it will weep. Good design handles it; ignoring it causes leaks.
- Edge protection is non-negotiable. Panel edges that are not fully enameled can corrode over time. Specify edge-coated panels.
- Cold climates need insulation. Steel conducts heat, so a digester in a cool region must be wrapped and jacketed — plan it at design, not as a retrofit.
Enamel bolted vs stainless: the real trade-off
Buyers often frame this as "enamel or stainless?" The honest answer is about volume and duty:
| Factor | Enamel bolted tank | Stainless (304 / 316L) |
|---|---|---|
| Capital at large volume | Low — value-engineered | High — alloy cost scales with size |
| Inert lining | Yes (glass enamel) | Yes (intrinsic alloy) |
| Best at | 1,000s of m³ economically | Small vessels, monolithic spec |
| Weak spot | Impact chips; needs edge coat | Can still corrode at sulfur-rich digester rims |
| Relocatable | Yes | No (welded structure) |
For municipal and industrial volumes, enamel bolted is the engineer's "value-engineered" default. Stainless earns its place when the spec demands a single alloy vessel at modest size.
What the specification means on site
| Property | Typical value | Why it matters |
|---|---|---|
| Surface smoothness | < 0.1 µm | Sludge and biofilm struggle to attach; cleaning stays cheap. |
| Coating thickness | 0.25–0.45 mm, both faces | Thick enough to absorb site handling and abrasion. |
| Adhesion | ≥ 3,450 N/cm | The glass stays put through hydraulic shock and temperature swing. |
| Hardness | 6.0 Mohs | Resists scuffing from mixers and cleaning gear. |
| PH range | 3–11 standard; 1–14 special | Covers leachate, digester slurry and seawater. |
| Holiday test | 700–1500 V per panel | Every sheet verified discontinuity-free before shipment. |
| Service life | > 30 years | One capital decision, no recurring recoat programme. |
Standards that should appear on the datasheet
- AWWA D103 — structural design of factory-coated bolted steel tanks.
- EN ISO 28765 — the vitreous-enamel tank standard for water and effluent.
- ISO 9001 — manufacturing quality system.
- NSF/ANSI 61 — required where the tank holds potable water.
- NFPA 22 — for fire-protection reserves.
Where enamel bolted tanks do the heavy lifting
The most aggressive site liquid — special pH 1–14 grade shrugs off acid, alkali and heavy metals.
Smooth inert walls resist H₂S and biological attack that destroy concrete faces.
Inert against organic acid; pair with a double membrane gas holder for gas storage. Allow for external insulation.
NSF 61-grade lining, non-porous, nothing leaches into supply.
Modular size suits buffer tanks and digester feed throughout the treatment train.
NFPA 22-compliant reserve that stays clean with almost no upkeep.
Frequently asked questions
What is an enamel bolted tank?
An enamel bolted tank is a storage vessel made from steel panels whose surfaces are coated with vitreous (glass) enamel and fused at 820–930°C. The panels arrive factory-finished and are bolted together on site. The enamel is not paint; it is an inorganic layer chemically bonded to the steel, giving the tank a hard, inert, non-porous lining.
Enamel bolted tank vs stainless steel: which should I specify?
Can an enamel bolted tank be buried underground?
How is the enamel coating tested for defects?
Do enamel bolted tanks need insulation in cold climates?
