Fusion Bonded Epoxy Bolted Steel Tanks for Marine Environments: Defying Salt, Waves, and Corrosion

Product Overview

Marine environments pose the ultimate challenge for storage infrastructure: salt spray, UV radiation, and constant humidity accelerate corrosion rates by 15x compared to inland sites (NACE International, 2023). Traditional solutions fall short:

• Stainless Steel Tanks: Chloride-induced pitting corrosion in coastal zones.
• Concrete Tanks: Saltwater penetration causes rebar oxidation and spalling.
• Fiberglass Tanks: Hydrolysis degrades resin in tropical climates.

Industry Impact: Offshore oil platforms alone spend USD7.4B annually replacing corroded tanks (Offshore Technology Journal).

Fusion Bonded Epoxy (FBE) Bolted Tanks: Engineering for the Abyss

Core Technology Breakdown

• Steel Substrate: ASTM A588 weathering steel (yield strength 50 ksi) for structural resilience.
• FBE Coating: 300–600 μm thickness applied via electrostatic spray, curing at 200°C to form:
  • Chemical Bond: Covalent bonding to steel prevents underfilm corrosion.
  • UV-Resistant Topcoat: Aliphatic polyurethane layer (ISO 12944 C5-M classification).
• Bolted Design:
  • Panels: Laser-cut with CNC precision (tolerance ±1.5mm).
  • Fasteners: 316L stainless steel with EPDM gaskets (NORSOK M-501 compliant).

Performance Metrics: FBE Tanks vs. Alternatives

Source: 2024 Offshore Corrosion Atlas

Critical Marine Applications

a. Offshore Oil & Gas

• Produced Water Storage: Resists H₂S concentrations ≤500 ppm.
• Ballast Water Tanks: IMO Ballast Water Management Convention compliant.
• Case Study: BP’s Thunder Horse Platform replaced galvanized tanks with FBE units in 2022, cutting maintenance downtime by 300 hours/year.

b. Desalination & Maritime Infrastructure

• RO Brine Storage: Tolerates 70,000 ppm TDS and 40°C operating temps.
• Port Fuel Depots: Explosion-proof designs (ATEX Directive 2014/34/EU).

c. ​Aquaculture & Shipbuilding

• Fish Feed Silos: FDA-compliant epoxy prevents lipid oxidation.
• Shipboard Potable Water: NSF/ANSI 61 certified for drinking water.

Compliance with Marine Standards

• NORSOK M-501: Surface preparation (Sa 2.5) and coating adhesion (≥5 MPa).
• ISO 20340: Cyclic testing (UV, salt spray, freezing).
• DNV-RP-B-401: Cathodic disbondment ≤6mm after 28 days.

Installation & Maintenance in Hostile Seas

a. Offshore Deployment Protocol

1. Foundation: Grouted to monopile structures (axial load ≥1,000 kN).
2. Panel Assembly: Bolt torque calibrated to 120 Nm (±5%) via hydraulic tools.
3. Coating Repair: Underwater epoxy patches for subsea installations.

b. Predictive Maintenance

• Cathodic Protection:
  • Impressed current systems for submerged zones (-800 mV Ag/AgCl).

Innovations in Marine-Grade FBE Tech

• Self-Healing Coatings: Microcapsules release corrosion inhibitors on scratch detection (DNV-GL certified).
• Biofilm-Resistant Epoxy: Silver-ion embedded coatings reduce fouling (IMO Anti-Fouling Convention compliant).
• Hydrogen-Resistant FBE: For hydrogen carrier ships (H₂ permeation <0.01 ppm).

Anchoring Reliability in Marine Storage

In an era where offshore operations demand zero-failure infrastructure, FBE bolted tanks offer unrivaled corrosion immunity, rapid deployability, and lifecycle cost savings up to 60%. From Arctic drilling rigs to tropical desalination plants, this technology is redefining marine storage resilience.

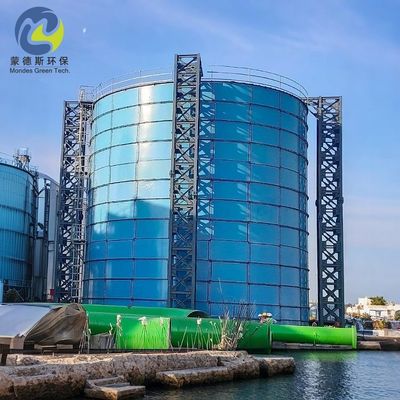

Product Show
