Hygienic Design Epoxy Bolted Tanks Storage For Food Processing Industry

Epoxy Bolted Tanks for Food Processing: Ensuring Safety, Efficiency, and Compliance

Product Overview

Discover how FDA-compliant epoxy bolted tanks revolutionize food processing with hygienic design, corrosion resistance, and rapid deployment.

The Hygiene Imperative in Food Processing Storage

The global food processing industry faces mounting pressure to meet stringent safety standards, with contamination risks costing the sector USD110 billion annually (FAO, 2023). Traditional welded tanks and concrete silos struggle with:

• Microbial Harborage: Cracks and crevices in welds promote biofilm formation.
• Chemical Leaching: Low-grade coatings release volatile organic compounds (VOCs).
• Cross-Contamination: Porous surfaces trap allergens like nuts and gluten.

Epoxy bolted tanks address these challenges through modular, crevice-free designs and NSF/3-A Sanitary Certified materials, making them the gold standard for dairy, brewing, and ready-to-eat food production.

Engineering Excellence: How Epoxy Bolted Tanks Work

a. Core Components & Materials

• Panels: Cold-rolled steel (ASTM A1008) coated with FDA 21 CFR 175.300-compliant epoxy (250–500 μm DFT).
• Bolting System: 304/316L stainless steel fasteners with silicone gaskets (EC1935/2004 food contact approval).
• Custom Configurations:
  • Capacity: 500 to 500,000 gallons.
  • Temperature: -30°C to 120°C (heated/cooled jackets optional).

b. Proprietary Coating Technology

• Electrostatic Spray Application: Ensures 100% coverage with zero pinholes.
• Curing Process: Thermal curing at 180°C creates a non-porous, chemically inert surface resistant to:
  • Acids (pH 2–12): Citric, acetic, and lactic acids.
  • High-sugar solutions: Syrups, molasses (≤80°Bx).
  • CIP chemicals: 4% caustic soda, 1.5% nitric acid.

Competitive Advantages Over Welded & Plastic Tanks

Data source: 2024 Food Plant Engineering Report

Critical Applications in Food & Beverage

a. Dairy & Fermentation

• Cheese Brining: Epoxy resists salt concentrations up to 25% NaCl.
• Yogurt Culturing: Smooth surface prevents bacterial adhesion (tested per ISO 22196).
• Case Study: A Wisconsin creamery reduced CIP water usage by 40% after switching to epoxy bolted tanks.

b. Brewing & Distilling

• Wort Storage: Withstands 95°C thermal cycling (no coating delamination).
• Spirit Aging: Ethanol-resistant up to 95% ABV.

c. Sauce & Condiment Production

• Tomato Processing: Prevents iron sulfide formation (black speck defects).
• Hot Fill Applications: Compatible with 85°C fill temperatures.

Compliance & Certifications

• Global Standards:
  • FDA 21 CFR 175.300 (indirect food additives).
  • EU Regulation EC 1935/2004 (materials in contact with food).
  • 3-A Sanitary Standard 63-01 (hygienic equipment design).
• Third-Party Validation:
  • NSF/ANSI 51: Food equipment materials.
  • ISO 21469: Lubricants with incidental product contact.

Installation & Maintenance Best Practices

a. Rapid Deployment Protocol

1. Site Prep: Level concrete pad (6" minimum, 3,000 psi compressive strength).
2. Panel Assembly: Bolt panels using torque-controlled tools (80–100 Nm).
3. Leak Testing: 24-hour hydrostatic test at 1.3x operating pressure.

b. Sanitation Management

• Automated CIP Systems:
  • Spray ball coverage: ≥1.5 GPM/ft² at 15 PSI.
  • Validation: ATP swab testing <50 RLU.
• Inspection Schedule:
  • Daily: Visual checks for coating integrity.
  • Annual: Ultrasonic thickness testing.

 Future Innovations

• Smart Coatings:
  • pH-sensitive epoxy changes color at coating damage (patent-pending).
• Sustainable Materials:
  • Bio-based epoxy from cashew nut oil (50% lower carbon footprint).

​Elevate Food Safety with Epoxy Bolted Tanks

In an industry where recalls can destroy brands overnight, epoxy bolted tanks deliver zero-tolerance hygiene, regulatory confidence, and operational agility. From craft breweries to multinational processors, this technology safeguards product integrity while slashing lifetime costs by up to 60%.

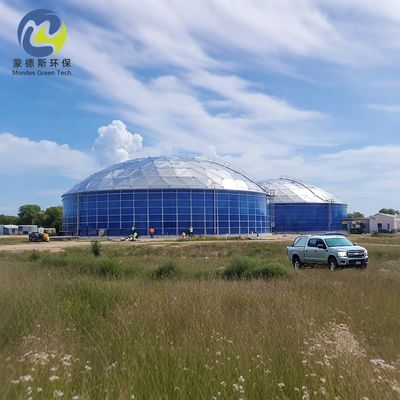

Product Show
