GFS Bolted Water Storage Tank
| MOQ: | 1 SET |
| Price: | Please contact us |
| Standard Packaging: | Angle Iron Frame + Tray + Collision Protection |
| Delivery Period: | 5~60 days |
| Payment Method: | L/C,T/T,Western Union |
| Supply Capacity: | 20 sets per month |
30+ Year Lifespan GFS Bolted Tank
,pH 1-14 Corrosion Resistance Glass-Fused-to-Steel Tank
,7-Day Installation Enamel Bolted Tank
GFS Bolted Water Storage Tank
A Complete Guide to GFS Bolted Tanks
Why Glass-Fused-to-Steel Is Revolutionizing Industrial Liquid Storage
Engineers and project managers in over 80 countries are switching from concrete and welded steel tanks to GFS bolted tanks. Here is what drives the switch, and how this technology can cut your project time and maintenance costs by up to 60%.
What Is a GFS Bolted Tank?
A GFS bolted tank (Glass-Fused-to-Steel bolted tank), also known as an enamel bolted tank or glass-lined steel tank, is a modular liquid storage tank made by fusing a layer of specialized glass to a steel substrate at temperatures exceeding 800°C (1,472°F). The glass and steel bond into one material that has both the strength of steel and the corrosion resistance of glass.
Unlike traditional welded steel tanks that require on-site welding and heavy machinery, GFS tanks are factory-manufactured in precision-cut panels and bolted together on-site using proprietary sealants and high-tensile bolts. This bolted design allows for faster installation and easier expansion, with no on-site welding. It works well for projects in remote locations, on tight schedules, or in regions with limited skilled labor.
Key takeaway: GFS bolted tanks are not "coated" steel — the glass and steel are molecularly fused, creating a surface that will never peel, chip, or delaminate.
1. Strong Corrosion Resistance
The glass-enamel inner surface forms an inert barrier that resists acids, alkalis, saltwater, and industrial effluents. With a pH tolerance range of 1 to 14, GFS tanks handle acidic mine runoff and caustic chemical wastewater without degradation.
No rust, pitting, or repainting needed. Tested to withstand 1,000+ hours of salt spray with zero surface change. Ideal for storing seawater, brine, and high-sulfur content liquids.
2. 30+ Year Service Life
While concrete tanks crack and welded steel tanks corrode, a properly maintained GFS bolted tank has a design life of 30 to 50 years. The enamel surface is non-porous and self-cleaning in many applications, which cuts downtime and lifecycle costs.
3. Rapid On-Site Assembly
GFS tanks ship as flat-packed panels and assemble like a 3D puzzle. A standard 1,000 m3 tank can be installed in just 7-10 days by a 4-6 person crew using only hand tools and a small forklift. No welding equipment or heavy cranes are needed, and installation can proceed in most weather conditions.
4. Fully Modular & Relocatable
Need more capacity next year? GFS bolted tanks can be expanded vertically or dismantled and relocated to a new site entirely. Welded and concrete tanks cannot do this. For growing operations, this flexibility is a major advantage. 100% panel reusability.
5. Certified to Global Standards
Well-manufactured GFS bolted tanks comply with: AWWA D103-09, NSF/ANSI 61, EN 10169, ISO 28765, AS/NZS 1170. Your tank meets the world's most demanding engineering standards.
6. Eco-Friendly & Sustainable
GFS tanks are 100% recyclable at end of life. The inert enamel surface prevents leaching into soil or groundwater. No epoxy coatings means zero VOC emissions during installation.
7. Proven in Extreme Climates
GFS bolted tanks operate in -45C winters in Inner Mongolia, +50C summers in the Middle East, coastal desalination plants, and mountain-top fire water installations. They have been deployed across every major climate zone.
Lifespan Comparison
| Tank Type | Typical Lifespan | Major Maintenance |
|---|---|---|
| GFS Bolted Tank | 30 – 50 years | Minimal (sealant inspection) |
| Welded Steel Tank | 15 – 20 years | Repainting every 3–5 years |
| Concrete Tank | 20 – 30 years | Crack repair, rebar treatment |
| HDPE Tank | 10 – 15 years | UV degradation, joint failure |
Where Are GFS Bolted Tanks Used?
GFS bolted tanks handle a wide range of industrial storage needs:
🛢 Drinking Water Storage
NSF-certified enamel surfaces keep potable water pure. Municipalities worldwide trust GFS tanks for reservoir storage, water tower bases, and emergency water reserves.

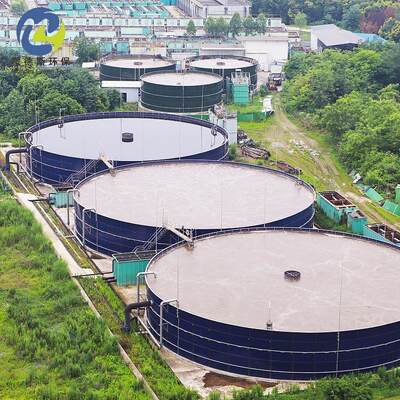

🚿 Wastewater Treatment
GFS tanks are common in municipal and industrial WWTPs, used for anaerobic digesters, aeration tanks, and clarifiers. The enamel surface resists the sulfur-rich, acidic environment of biogas production.
🔥 Biogas & Digestion
The gas-tight design and chemical resistance suit GFS tanks well for biogas digester applications. They store slurry, manure, and organic waste while withstanding the corrosive byproducts of methanogenesis.
🔥 Fire Protection Water
Insurance-rated fire water tanks built to NFPA 22 standards ensure reliable suppression water is always on standby. Quick assembly means your facility is protected sooner.
⚙ Industrial Process Water
Mining operations, power plants, pulp & paper mills, and chemical factories use GFS tanks for process water, cooling water, and effluent containment.
♿ Leachate Storage
Landfill leachate is notoriously corrosive. GFS tanks handle high-ammonia, high-heavy-metal leachate without liner degradation.
🌾 Agriculture & Aquaculture
GFS tanks are used for manure slurry storage, fish farming, and irrigation reservoirs in agriculture and aquaculture.
🌧 Rainwater Harvesting
Large-scale rainwater collection systems for commercial buildings, industrial parks, and eco-communities rely on GFS tanks for their purity and durability.
📦 Bulk Dry Storage
With a roof and appropriate modifications, GFS tanks store grain, cement, fly ash, and other dry bulk materials.
⚠ Emergency & Disaster Relief Water
GFS tanks can be deployed quickly for disaster relief. A potable water tank can be operational within days of a hurricane or earthquake.
Technical Specifications at a Glance
| Parameter | Range |
|---|---|
| Capacity | 20 m³ to 20,000 m³+ |
| Diameter | 3 m to 50 m |
| Height | 3 m to 24 m |
| Steel Thickness | 3 mm – 20 mm |
| Enamel Coating Thickness | 250 – 450 μm (2-coat 2-fire or 3-coat 3-fire) |
| pH Tolerance | 1 – 14 |
| Temperature Range | -50°C to +80°C (liquid) |
| Bolt Material | High-tensile galvanized or stainless steel |
| Sealant | Industrial-grade silicone (UV & weather resistant) |
| Roof Options | Glass-steel, membrane, aluminum dome, GRP |
| Color Options | Dark green, dark blue, white, or custom RAL |
GFS Bolted Tanks vs. Welded Steel vs. Concrete: The Honest Comparison
Choosing the right tank technology has a direct impact on your project budget:
| Factor | GFS Bolted Tank | Welded Steel Tank | Concrete Tank |
|---|---|---|---|
| Installation Speed | 7–14 days (1,000 m³) | 30–60 days | 45-90 days
|
| Requires Welding | No | Yes (extensive) | No (Formwork) |
| Corrosion Resistance | Excellent (enamel fused) | Poor (needs coating) | Moderate (Cracks) |
| Lifespan | 30–50 years | 15–20 years | 20-30 years |
| Expandable | Yes (add courses) | No | No |
| Relocatable | Yes | No | No |
| Maintenance Cost | Very low | High (repainting) | Medium (Crack Repair)) |
| Shipping | Flat-packed | Bulky coils/plates | On-site materials |
| Environmental Impact | Low (recyclable, no VOCs) | Medium (welding fumes) | High (Cement CO₂) |
| Total Lifecycle Cost | Lowest | Medium | High |
Bottom line: When you factor in installation speed, maintenance savings, and resale/relocation value, GFS bolted tanks deliver the lowest total cost of ownership over a 30-year horizon.
How to Choose the Right GFS Tank Manufacturer
GFS tanks vary in quality from one manufacturer to another. When evaluating suppliers, ask these questions:
√ What enamel grade do you use? Look for double-coat, double-fire enamel with 250+ um thickness.
√ Are your tanks AWWA D103 / NSF 61 certified? Demand certificates, not claims.
√ What is your steel substrate specification? Should be structural steel plate (SRT390, SRT480, SRT550).
√ Do you provide engineering drawings stamped by a licensed PE? Essential for permitting.
√ What sealant system do you use? Look for reputable brands like Lida, Huagui or Sika.
√ Can you provide references from projects in my climate zone? Proven performance matters.
√ What is your warranty period? Quality manufacturers offer 5-year warranties minimum.
√ Do you offer installation supervision or turnkey installation? Reduces your risk significantly.
🚀 Request a Free Quote & Engineering Consultation
Ready to spec a GFS bolted tank for your next project? Our engineering team provides:
- Free tank sizing and configuration based on your capacity and site constraints
- 3D tank models and AutoCAD drawings within 48 hours
- Detailed pricing with shipping to your nearest port
- Installation supervision or full turnkey installation worldwide
- 30-year design life guarantee
Tell us your capacity, liquid type, and project location — tailored proposal within 2 business days.
